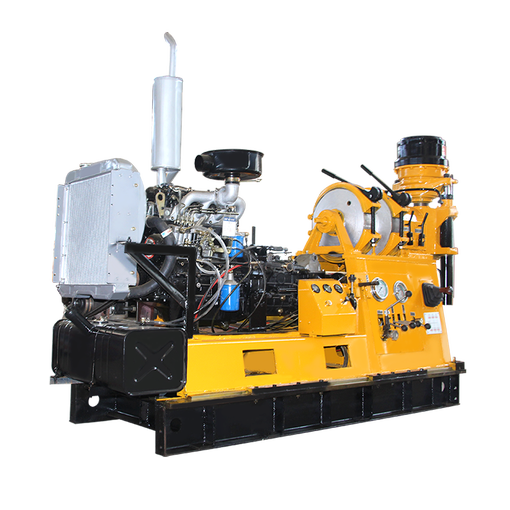

HMXY3
| Whole machine parameters | Model | HMXY3 |
| Drilling depth (m) | 100/250/300/600 | |
| Hole diameter (mm) | 325 | |
| End hole diameter (mm) | 325/200/150/75 | |
| Drilling angle (°) | 90-65 | |
| Matching power (kW) | 42 | |
| Weight (kg) | 1800 | |
| Dimensions (length * width* height m) | 2600*900*1750 | |
| Spindle | Speed (rpm) | 32-1057 |
| Stroke (mm) | 600 | |
| Hoist | Single rope hoisting force (kg) | 3000 |
| Single rope hoisting speed (m/s) | 0. 3-1.9 | |
| Steel cable diameter (mm) | Φ12.5 | |
| Steel cable capacity (m) | 65 | |
| Drill tower | Rated load (T) | 18 (Optional) |
| Effective height (m) | 9.6 |
