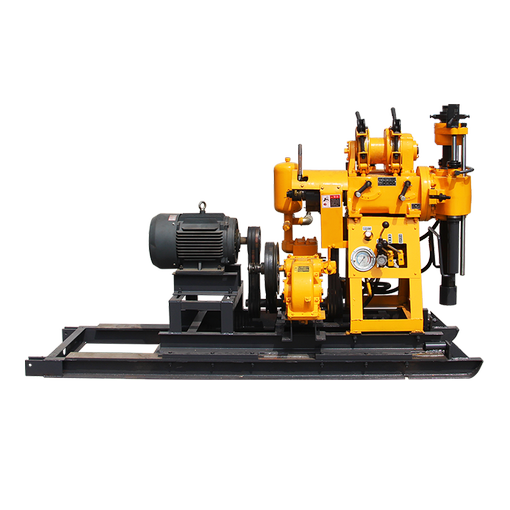

HM160YY
| Whole machine parameters | Model | HM160YY |
| Drilling depth (m) | 160 | |
| Hole diameter (mm) | 500 (soil)/220 (rock) | |
| End hole diameter (mm) | 60 | |
| Drill rod diameter (mm) | 42/50/60 | |
| Drilling inclination (°) | 90-75 | |
| Matching power (kW) | 13.2 | |
| Weight (kg) | 780 | |
| Drilling rig dimensions Length*Width*Height (L*W*H) | 3*1.1*1.45 | |
| Vertical shaft | Vertical shaft rotation speed (r/min) | 142/285/570 |
| Vertical shaft stroke (mm) | 450 | |
| Hoist | Single rope hoisting force (kg) | 1500 |
| Single rope hoisting speed (m/s) | 0. 12-1. 21 | |
| Wire rope diameter (mm) | φ9. 5 | |
| Wire rope capacity (m) | 35 | |
| Drill tower | Rated load (Ton) | 16 |
| Effective height (m) | 6.5 | |
| Mud pump | Flow rate (L/Min) | 160 |
| Maximum pressure (MPa) | 1.5 | |
| Optional configurations | Mobile Gantry Crane | |
