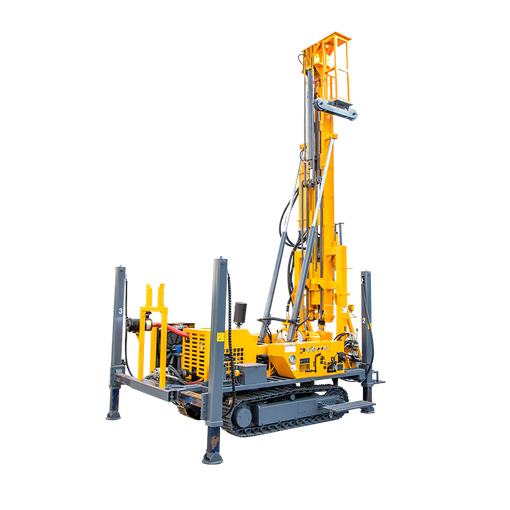

HMDL500

Model HMDL500
Well drilling depth 800m (152mm~203mm)
Wireline core retrieval with 75mm hole diameter 1200m
Drilling (bit) diameter Ø75～Ø350mm
Drilling angle 75-90°
Lifting force 240KN
Thrust force 180KN
Rotary speed Clockwise：43-1080r/min
Counterclockwise：47-144r/min
Maximum torque 14000N.m
Diesel engine model YunnI YN48GBZ
Rated power/speed 92kW/ 2400r/min
Mechanical winch single rope lifting force 8Ton
Drill rod diameter 50/60/76/89mm NQ/HQ/PQ
Drill rod length 3000mm
Matching mud pump BW200/BW250/BW320
Travel speed 0～2Km/h
Climbing ability Max. 25°~30°
Transportation state dimensions 6300*2000*2650mm
Working state dimensions 3800*2500*8500mm
Overall weight 11500Kg
