HML90

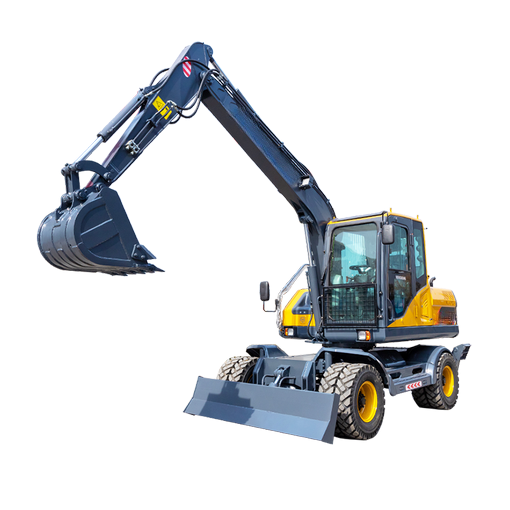

HWL90 Wheel Excavator
Overall Configuration
Operating Weight 7.2T
Engine Model 4D32
Engine Power 55KW/2200rpm
Fuel Tank Capacity 130L
Main Pump Displacement 27+27ml/r
Hydraulic Oil Tank Capacity 110L
Working Pressure 24MPa
Dimensions
Total Length (A) 6410mm
Total Width (B) 2020mm
Total Height (C) 2840mm
Wheelbase (D) 2400mm
Tire Model (E) 825-16
Number of Tires (F) 8
Track Width (G) 2400mm
Minimum Ground Clearance (H) 220mm
Maximum Dozer Blade Lift Height (I) 320mm
Maximum Dozer Blade Support Height (J) 30mm
Working Range
Maximum Digging Height 6930mm
Maximum Unloading Height 5170mm
Maximum Digging Depth 3655mm
Maximum Digging Radius 6845mm
Arm Digging Force 17.6kN
Bucket Digging Force 33.2kN
Bucket Capacity 0.28m³
Travel Speed 30km/h
Minimum Turning Radius 6800mm
Climbing Ability 35°
Rotation Speed 10.5r/min
Minimum Tail Swing Radius 1980mm

HML90 Wheel Log Grabber
Overall Configuration
Operating Weight 8.2T
Engine Model 4D32
Engine Power 55KW/2200rpm
Fuel Tank Capacity 130L
Main Pump Displacement 27+27ml/r
Hydraulic Oil Tank Capacity 110L
Working Pressure 20.5MPa
Dimensions
Total Length (A) 6410mm
Total Width (B) 2120mm
Total Height (C) 2840mm
Wheelbase (D) 2400mm
Tire Model (E) 825-16
Number of Tires (F) 8
Track Width (G) 1670mm
Minimum Ground Clearance (H) 220mm
Maximum Dozer Blade Lift Height (I) 320mm
Maximum Dozer Blade Support Height (J) 36mm
Working Range
Maximum Grabbing Height 7150mm
Maximum Unloading Height 5150mm
Maximum Grabbing Depth 3680mm
Maximum Grabbing Radius 6845mm
Grab Opening 1250mm
Maximum Grabbing Weight 1200kg
Travel Speed 35km/h
Minimum Turning Radius 6800mm
Climbing Ability 35°
Rotation Speed 10.5r/min
Minimum Tail Swing Radius 1980mm
