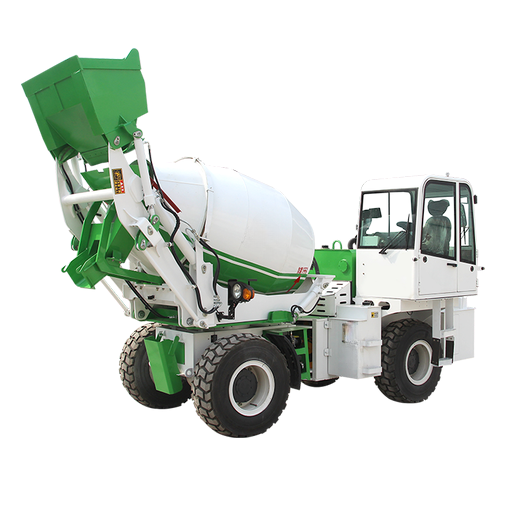

HMJB240

Item Parameter
Actual Mixing Volume (m³) 2.2
Mixer Drum Capacity (m³) 2.4
Bucket Capacity (m³) 0.4
Tilt Angle (°) 20
Rotation Speed (r/min) 12-24
Rotation Direction Clockwise; Discharging;Counterclockwise
Mixer Drum Blades Two sets of spiral blades and four sets of auxiliary blades
Concrete Slump (mm) 70-260
Hydraulic Transmission System
Oil Pump Model R1-F50/50 BT6HL
Motor Model MS30-160
Reducer Speed Ratio 1:24
Water Supply System
Water Tank Capacity/Water Supply Form (L) 5540/Automatic timing and constant water supply mechanism
Performance Parameters
Engine Model/Displacement (L) YN38GBZ
Type Direct injection four-stroke water-cooled turbocharged diesel engine
Rated Power (Kw/r/min) 76KW/2400r/min
Maximum Torque (N.m/r/min) 380/1500-1800
Maximum Travel Speed (Km/h) 24
Minimum Turning Radius (mm) 4500
Climbing Ability (%) 50
Tires 8.25R16LT
Drive Form 4*4
Total Vehicle Equipment Quality (Kg) 6640
Maximum Loading Quality (Kg) 5600
Maximum Total Vehicle Quality (Kg) 12240
Wheelbase/Axle Base (mm) 2100/2900
Overall Vehicle Dimensions (LengthWidthHeight mm) 5650*2850*2770
Note Optional Configuration: Left rear driving cab
Optional Configurations

Rotating seat; Air conditioning; High-pressure car wash pump; Automatic grease machine;

Cement hopper; Electronic hydraulic weighing; Vibrator
